Trailmaster TM22 125cc Dirt Bike, Four-Gear Manual Clutch, 29.13-Inch Seat Height, Kick Start
Original price was: $1,149.00.$847.00Current price is: $847.00.
Brand:
Trail Master
... people are viewing this right now
Description
Trailmaster TM22 125cc Dirt Bike, Four-Gear Manual Clutch, 29.13-Inch Seat Height, Kick Start
Meet the TM 22-125, the ideal junior-sized dirt bike designed to empower young riders with the thrill of off-road adventure. Powered by a high-performance 125cc 4-stroke engine, this bike delivers 8.3 horsepower and can reach top speeds of around 45 MPH. With a seat height of 29 inches, it provides a comfortable fit for aspiring motocross enthusiasts. Available in bright colors: red, blue, green, and orange, the TM 22-125 is sure to turn heads on the trails.
Key Features:
- Powerful 125cc Engine: Engineered for reliable power and acceleration.
- Kick Start Manual Clutch: Offers a straightforward starting method for young riders.
- 4-Speed Manual Transmission: Engage in a hands-on riding experience with responsive shifting.
- Durable Frame: Constructed for resilience, ensuring the bike stands up to tough riding conditions.
- Comfortable Dimensions: Featuring a 41.54-inch wheelbase and a 29.13-inch seat height, it promotes a natural riding posture.
- Tire Specifications: Equipped with 14-inch front tires and 12-inch rear tires for enhanced traction and stability.
- Hydraulic Disc Brakes: Front and rear disc brakes provide reliable stopping power.
- Aluminum Handlebars: Lightweight and robust, improving handling and control.

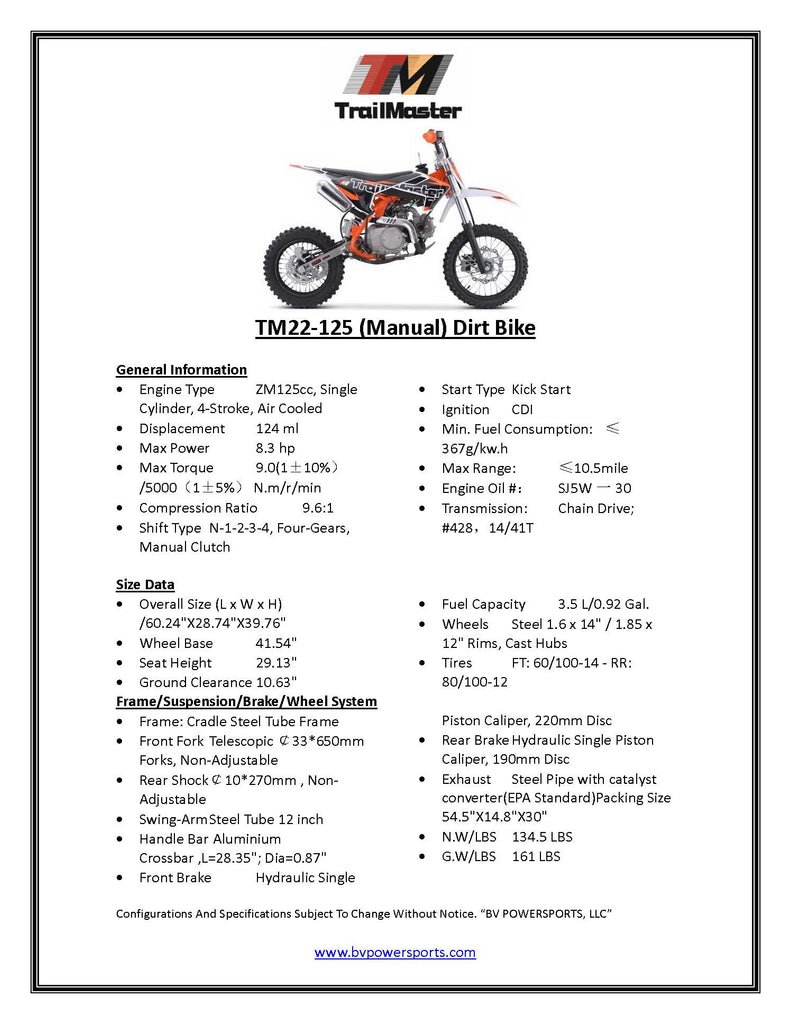

Specifications
Vehicle Specifications
General Information
| Parameter | Details |
|---|---|
| Engine Type | ZM125cc, Single Cylinder, 4-Stroke, Air Cooled |
| Displacement | 124 ml |
| Max Power | 8.3 hp |
| Max Torque | 9.0 (1±10%)/5000 (1±5%) N.m/r/min |
| Compression Ratio | 9.6:1 |
| Shift Type | N-1-2-3-4, Four-Gears, Manual Clutch |
| Start Type | Kick Start |
| Ignition | CDI |
| Min. Fuel Consumption | ≤367 g/kw.h |
| Max Range | ≤10.5 miles |
| Engine Oil # | SJ5W-30 |
| Transmission | Chain Drive; #428, 14/41T |
Size Data
| Parameter | Details |
|---|---|
| Overall Size (LxWxH) | 60.24 x 28.74 x 39.76 inches / 1530 x 729 x 1009 mm |
| Wheel Base | 41.54 inches |
| Seat Height | 29.13 inches |
| Ground Clearance | 10.63 inches |
| Fuel Capacity | 3.5 L / 0.92 Gal. |
| Wheels | Steel 1.6 x 14" / 1.85 x 12" Rims, Cast Hubs |
| Tires | FT: 60/100-14 / RR: 80/100-12 |
Frame/Suspension/Brake/Wheel System
| Parameter | Details |
|---|---|
| Frame | Cradle Steel Tube Frame |
| Front Fork | Telescopic ￠33*650mm Forks, Non-Adjustable |
| Rear Shock | ￠10*270mm, Non-Adjustable |
| Swing-Arm | Steel Tube 12 inch |
| Handle Bar | Aluminium Crossbar, L=28.35"; Dia=0.87" |
| Front Brake | Hydraulic Single Piston Caliper, 220mm Disc |
| Rear Brake | Hydraulic Single Piston Caliper, 190mm Disc |
| Exhaust | Steel Pipe with catalyst converter (EPA Standard) |
| Packing Size | 54.5" x 14.8" x 30" |
| N.W | 134.5 LBS / 61 KG |
| G.W | 161 LBS / 73 KG |
