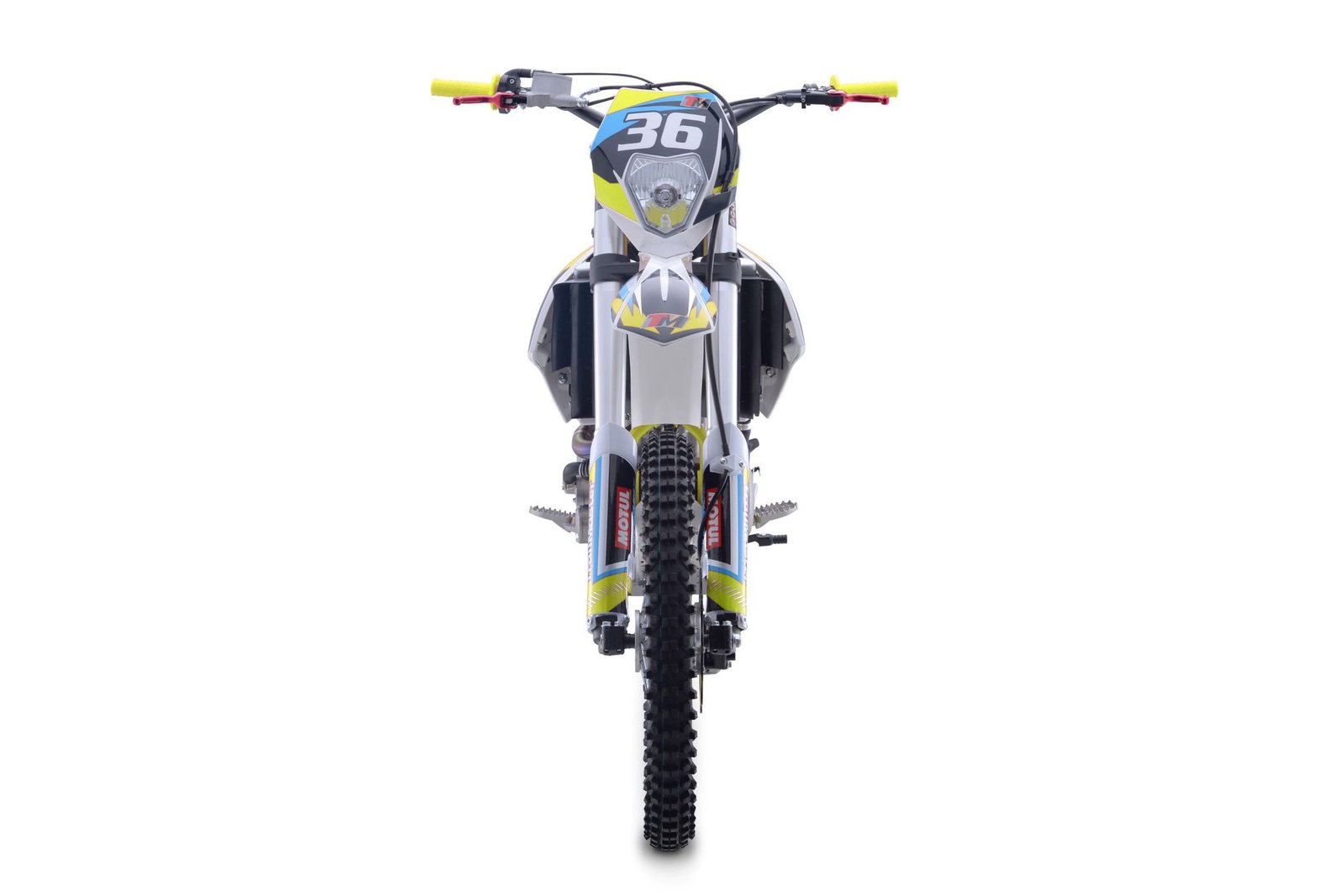

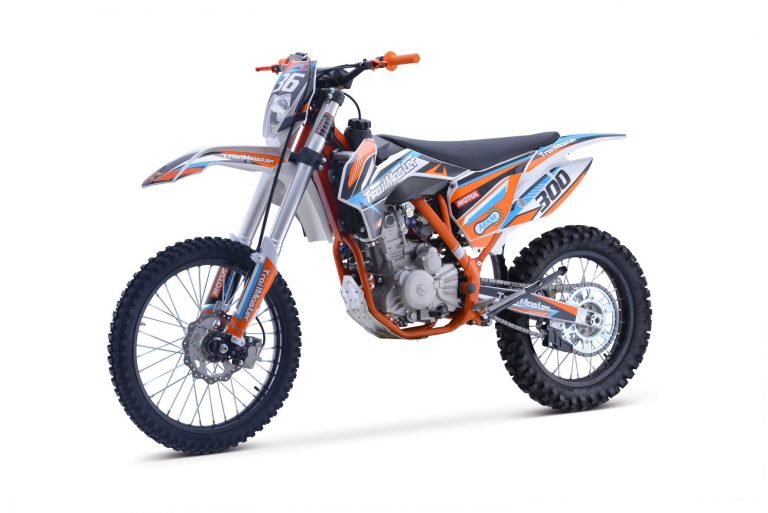

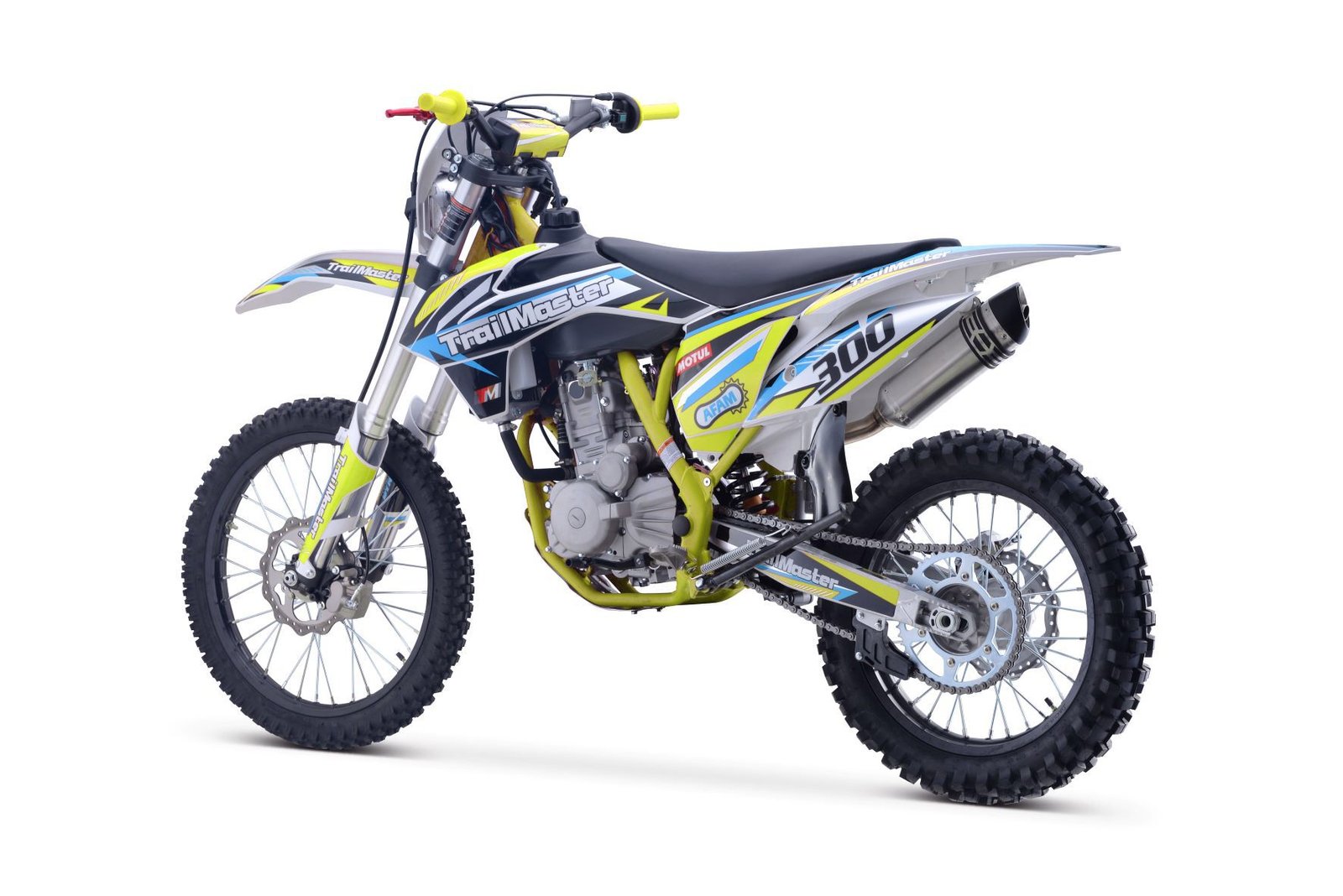

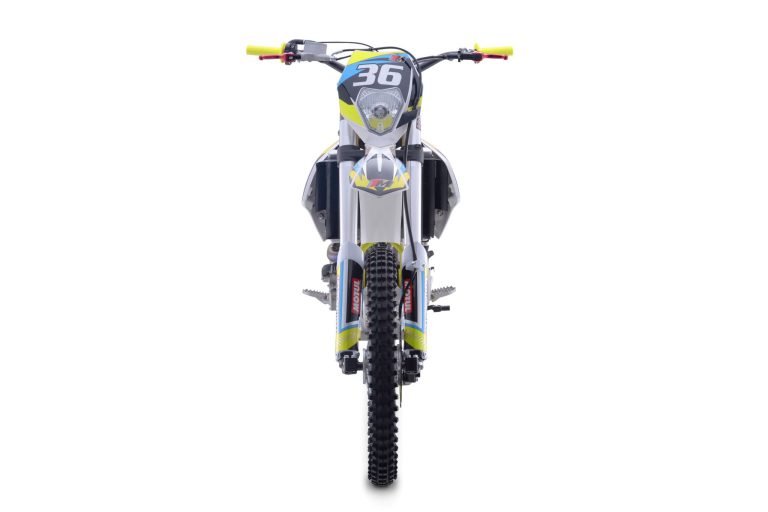

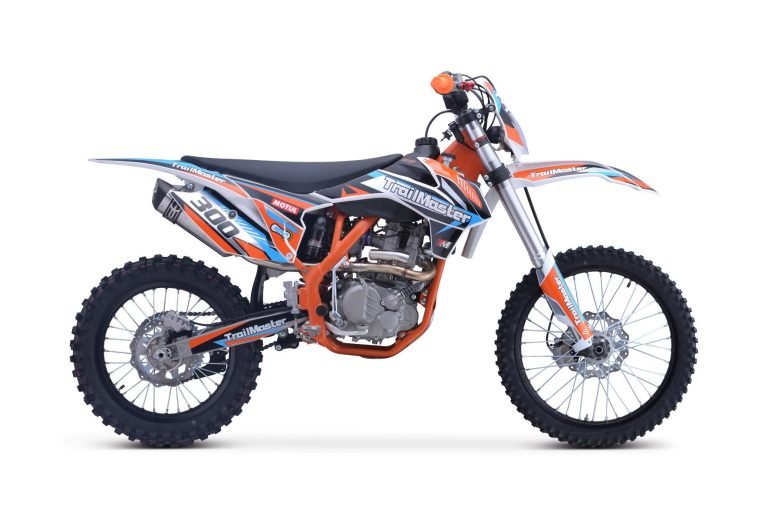

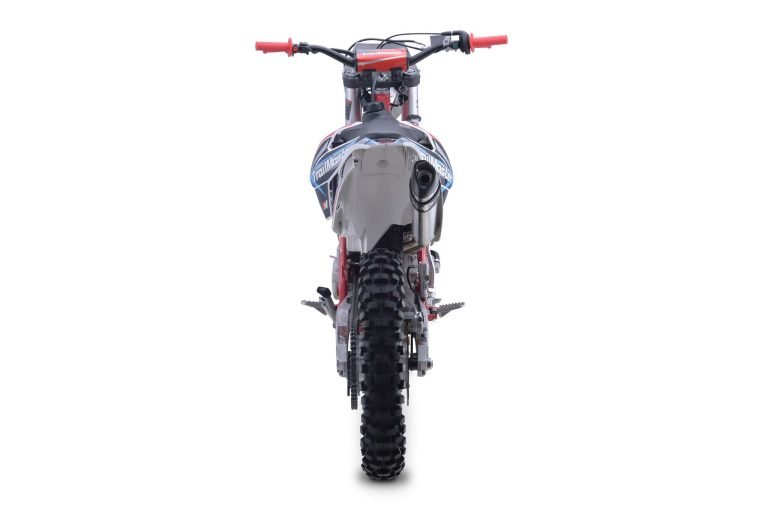

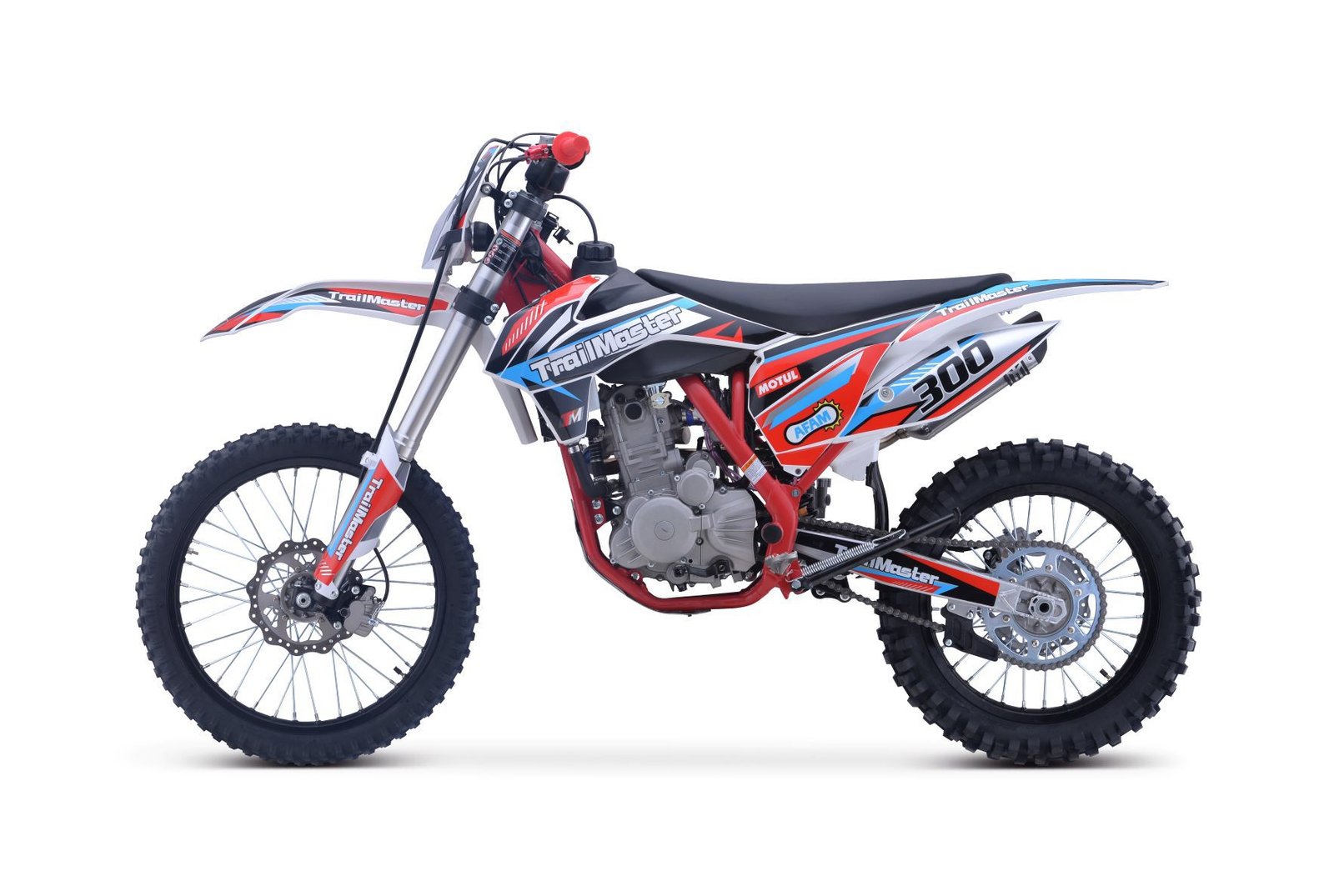

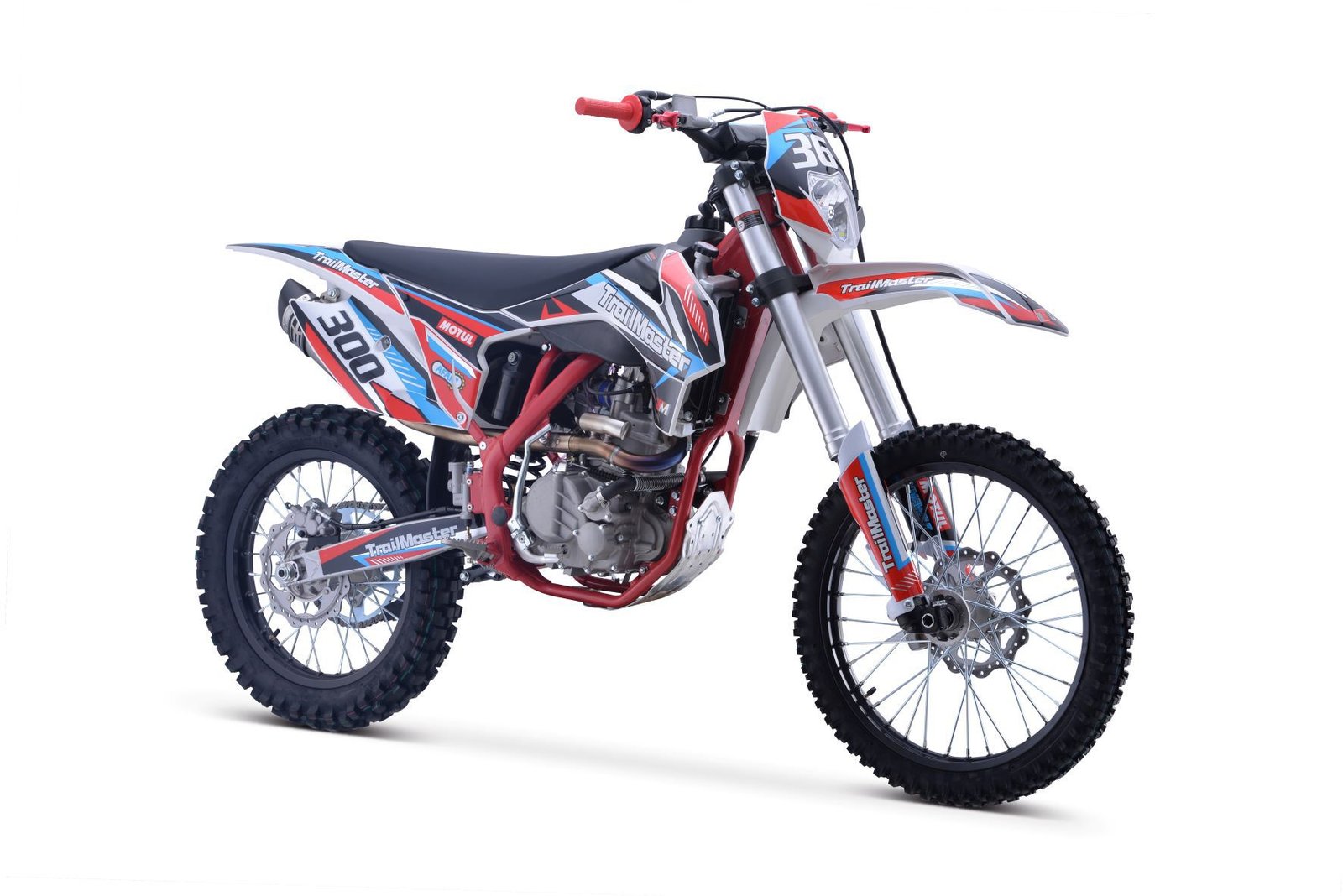

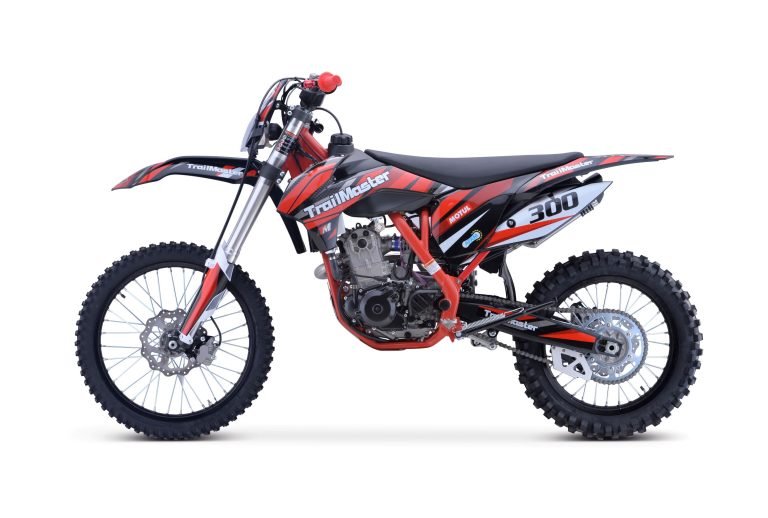

Trailmaster TM36 300cc Off-Road Dirt Bike, 5 gear manual clutch, Electric and kick start-[competition only /- No warranty]
Original price was: $3,499.00.$3,099.00Current price is: $3,099.00.
Description
Trailmaster TM36 300cc Off-Road Dirt Bike, 5 gear manual clutch, Electric and kick start-[competition only /- No warranty]
The TrailMaster TM 36-300 is the ultimate full-size dirt bike, delivering exceptional power and performance. Equipped with a 279cc liquid-cooled 4-stroke engine, it generates 27 HP, reaching speeds of up to 65 MPH. Designed for riders who demand precision, this bike excels on challenging trails and fast-paced rides.
Power and Performance
The TM 36-300 features both electric and kick start options for easy ignition, ensuring reliability in all conditions. The 5-speed manual transmission offers full control, while the lightweight central tube high-strength steel frame (326 lbs) enhances agility and handling.
Suspension and Handling
With 21” front and 18” rear wheels, the bike boasts race-grade suspension. The inverted hydraulic dual adjustable front forks (910mm length, 245mm travel) and dual adjustable rear shock (460mm, 120mm travel) ensure a smooth ride, even on rough terrain.
Brakes and Features
The dual-piston caliper 240mm disc brakes provide powerful stopping, while the LED headlight ensures visibility. The bike’s electronic digital CDI ignition ensures consistent power, and the 59” wheelbase and 37” seat height provide a comfortable, commanding ride.
Available Colors
Choose from vibrant red, green, or orange to match your style.
Key Features:
- Powerful 279cc liquid-cooled 4-stroke engine with 27 HP
- Electric and kick start options for convenience
- 5-speed manual clutch transmission for precise control
- Central tube high-strength steel frame for durability and lightweight performance
- 59” wheelbase and 37” seat height for a comfortable and commanding ride
- 21” front tire / 18” rear tire for superior traction and handling
- Dual-piston caliper, 240mm disc front brake for reliable stopping power
- 910mm inverted hydraulic dual adjustable front forks with 245mm travel
- 460mm dual adjustable rear shock with ballonet and 120mm travel for a smooth ride
- LED headlight for improved visibility during night rides
Specifications
Vehicle Specifications
| POWER SYSTEM | |
|---|---|
| Engine Type | CBS300, Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooling, SOHC |
| Displacement | 279 cc |
| Max Power | 27 Hp @ 8500 rpm |
| Max Torque | 23 N.m @ 7000 rpm |
| Compression Ratio | 11.1:1 |
| Shift Type | Manual Wet Multi-Plate, Constant Mesh, Two-Stage Transmission, 5-Gears |
| Start Type | Electric & Kick Start |
| Carburetor | PWK34 |
| Ignition | Digital CDI |
| Drive Train | #520 Chain, FT: 13T / RR: 49T Sprocket |
| PERFORMANCE | |
| Front Fork | Φ53*Φ58.5-910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel |
| Rear Shock | 460mm Dual Adjustable Shock with Ballonet, 120mm Travel |
| Front Wheel | 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21 |
| Rear Wheel | 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18 |
| Front Tires | 80/100-21 |
| Rear Tires | 110/100-18 |
| Front Brake | Dual Piston Caliper, 240mm Disc |
| Rear Brake | Single Piston Caliper, 240mm Disc |
| DETAILS | |
| Frame | Central Tube High Strength Steel |
| Swing-Arm | Steel Swingarm, L=590mm |
| Handle Bar | Tapered Aluminum #7075 |
| Overall Size (L × W × H) | 86.6″ x 33.9″ x 49.2″ |
| Packing Size (L × W × H) | 67.5″ x 18″ x 34″ (1714 x 457 x 863 mm) |
| Wheel Base | 59″ |
| Seat Height | 37″ |
| Ground Clearance | 11.8″ |
| Fuel Capacity | 1.72 Gal. |
| Net Weight | 234 lbs / 106 kg |
| Gross Weight | 326 lbs / 148 kg |
