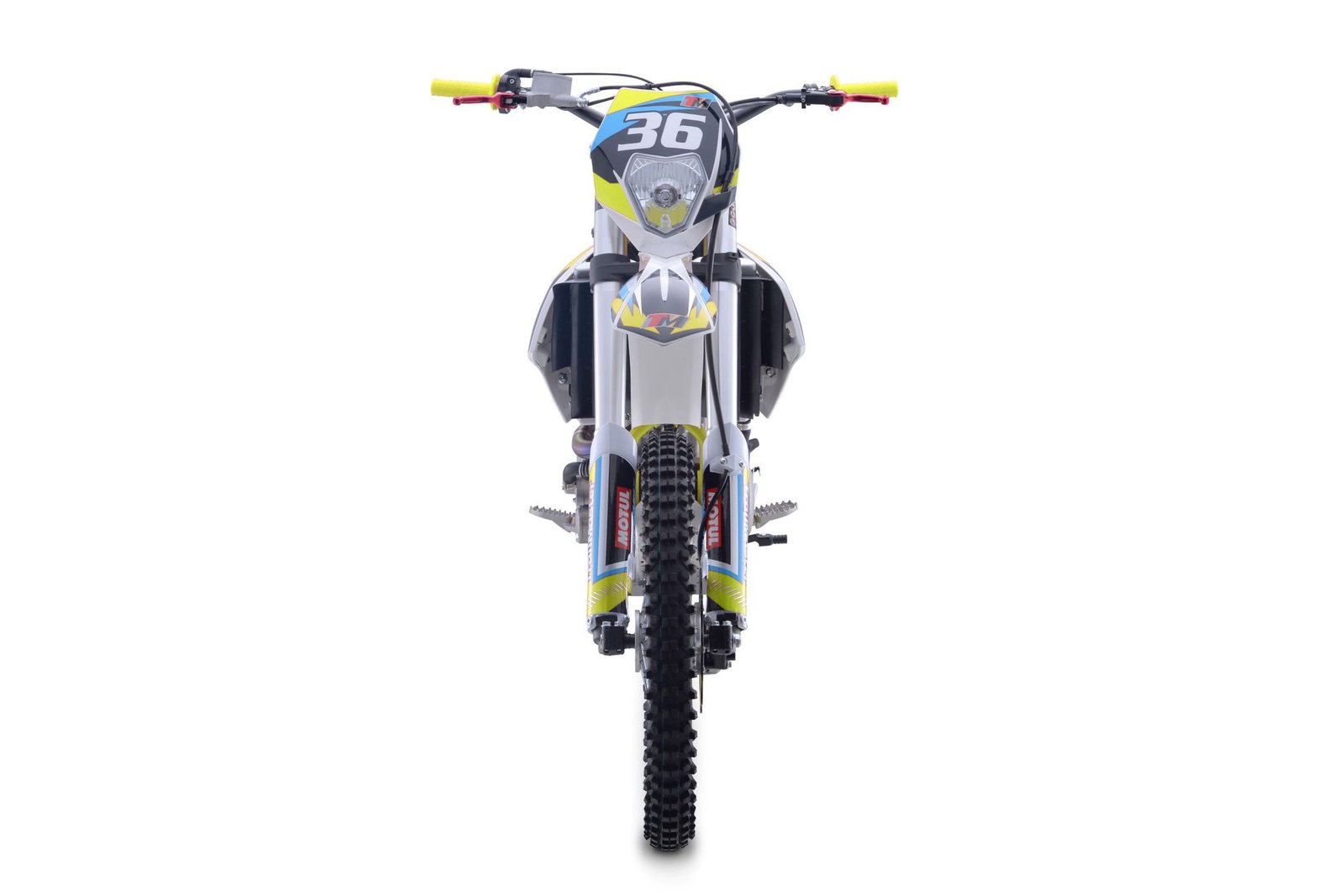

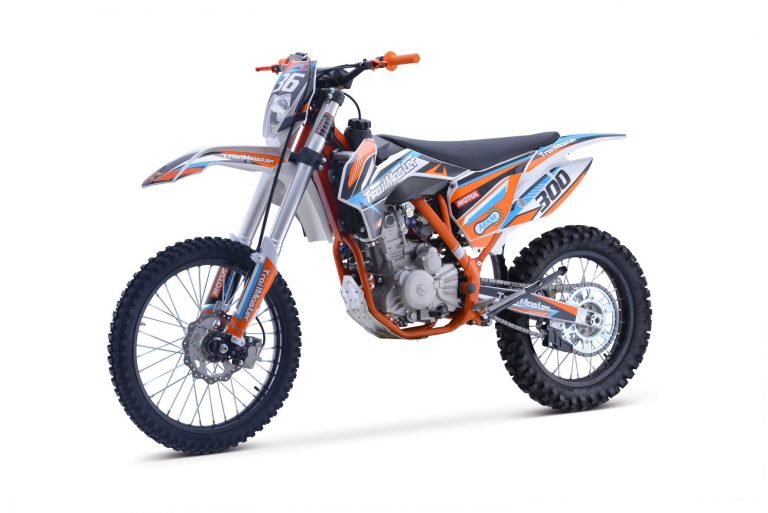

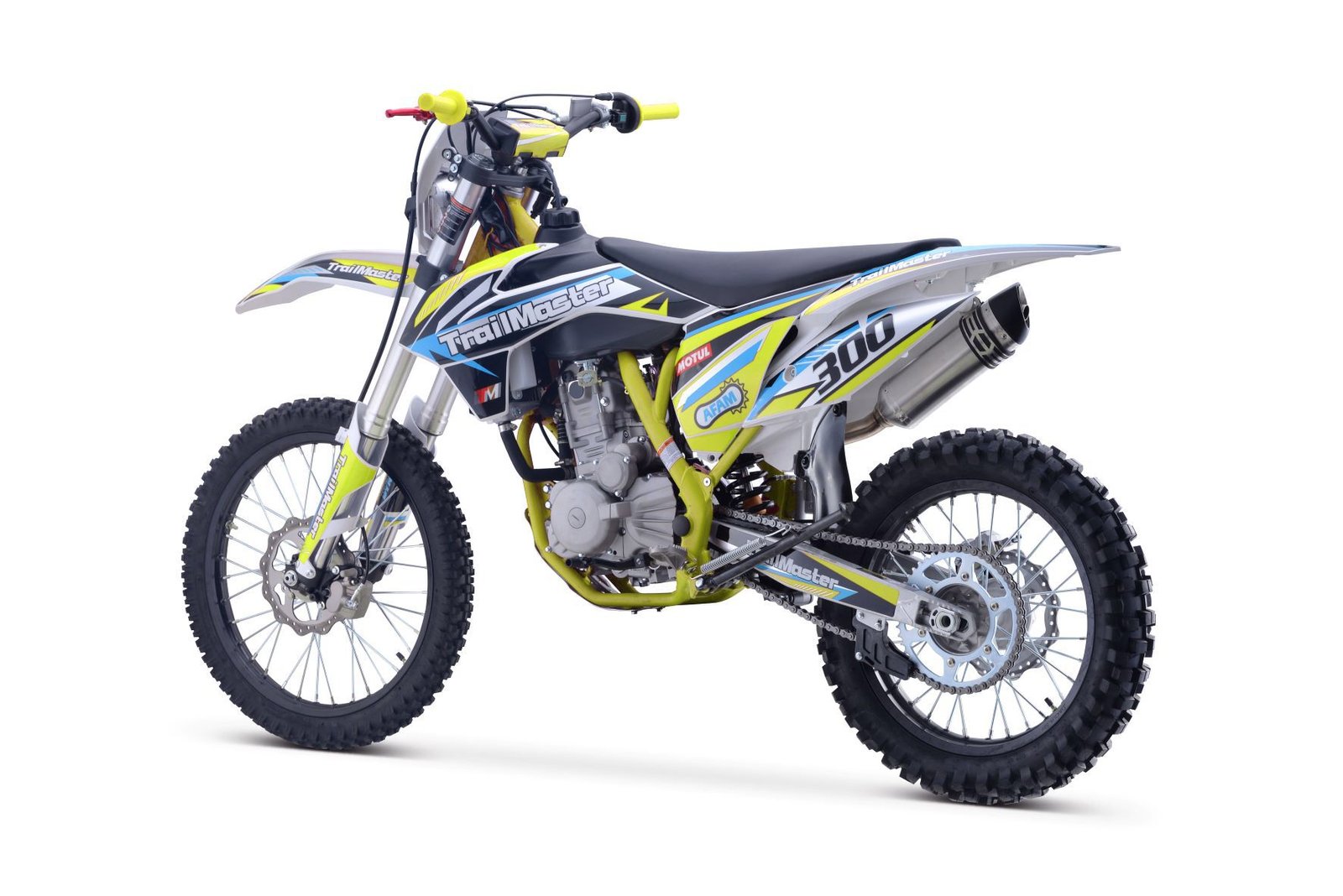

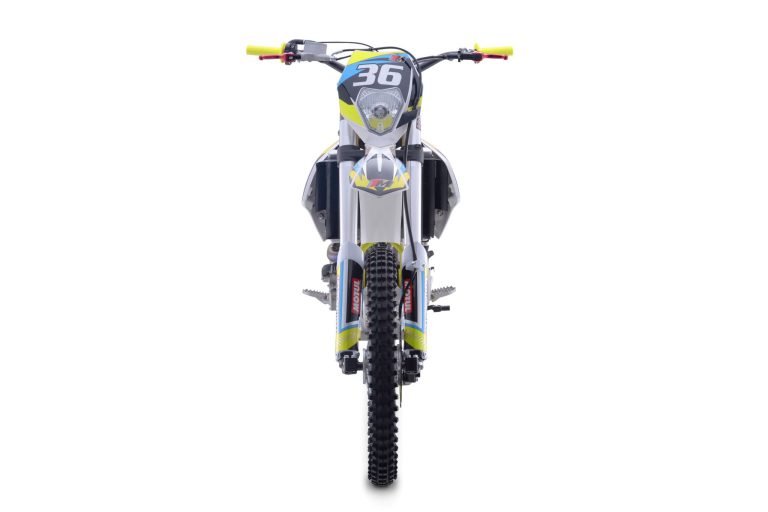

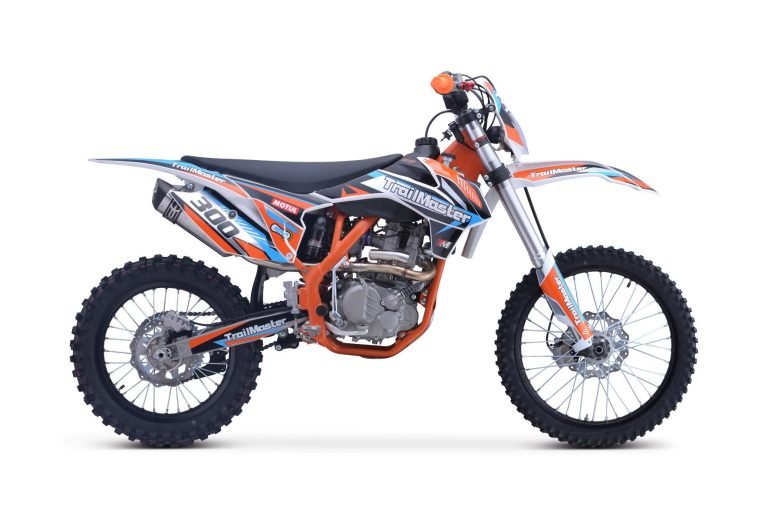

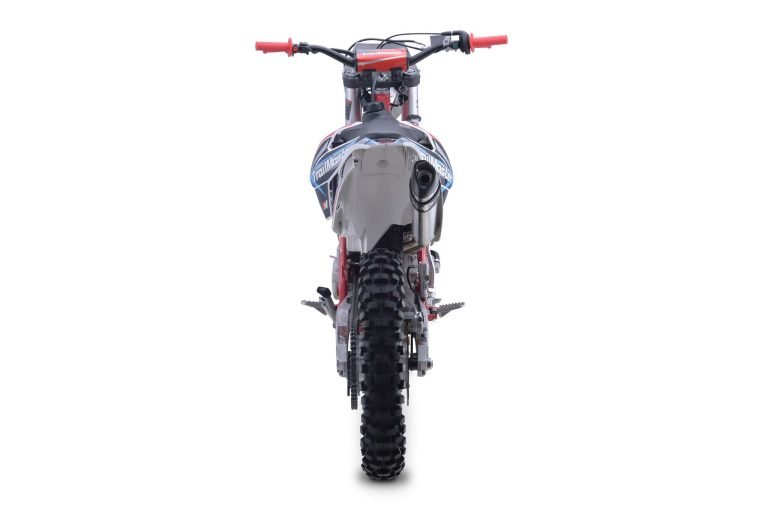

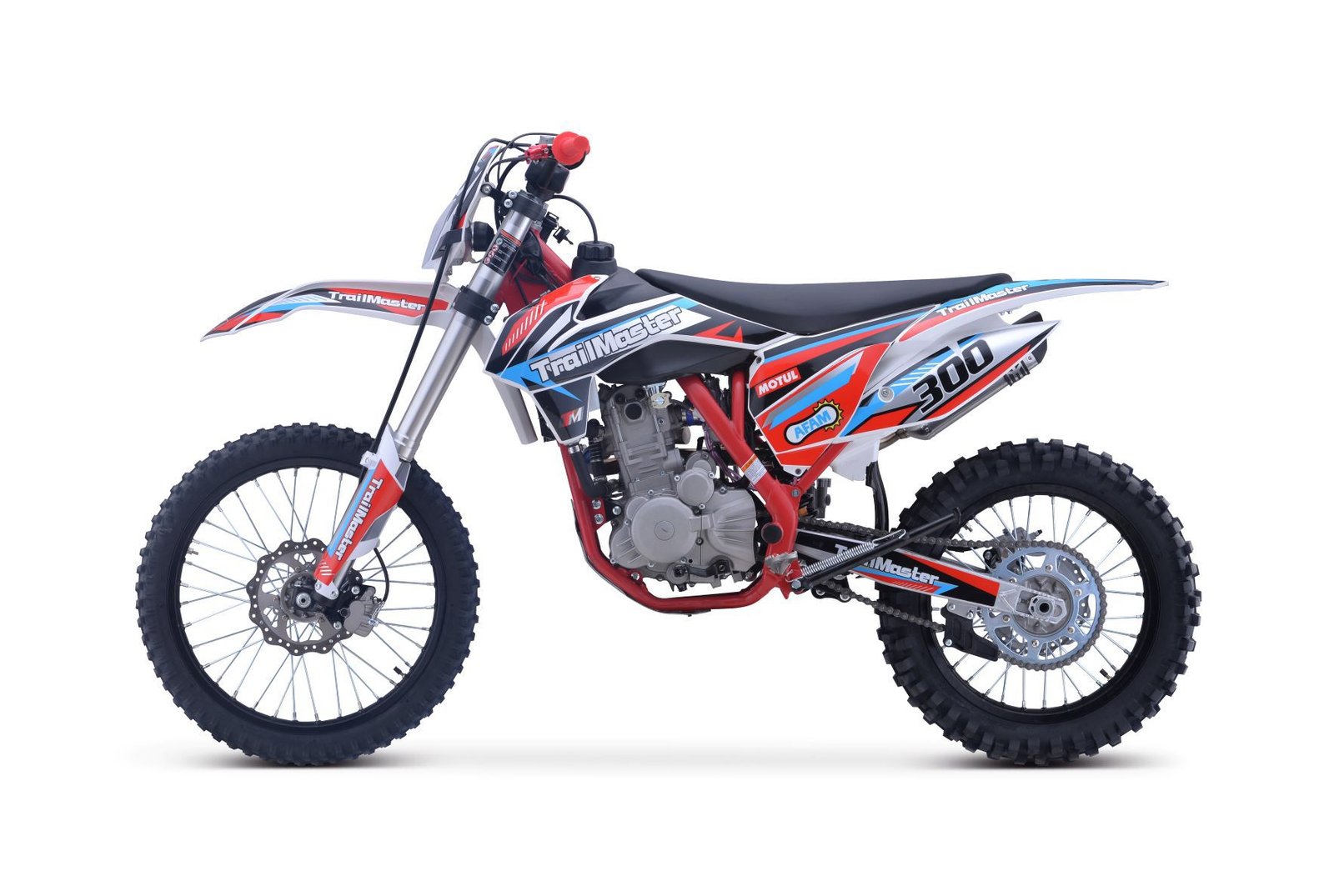

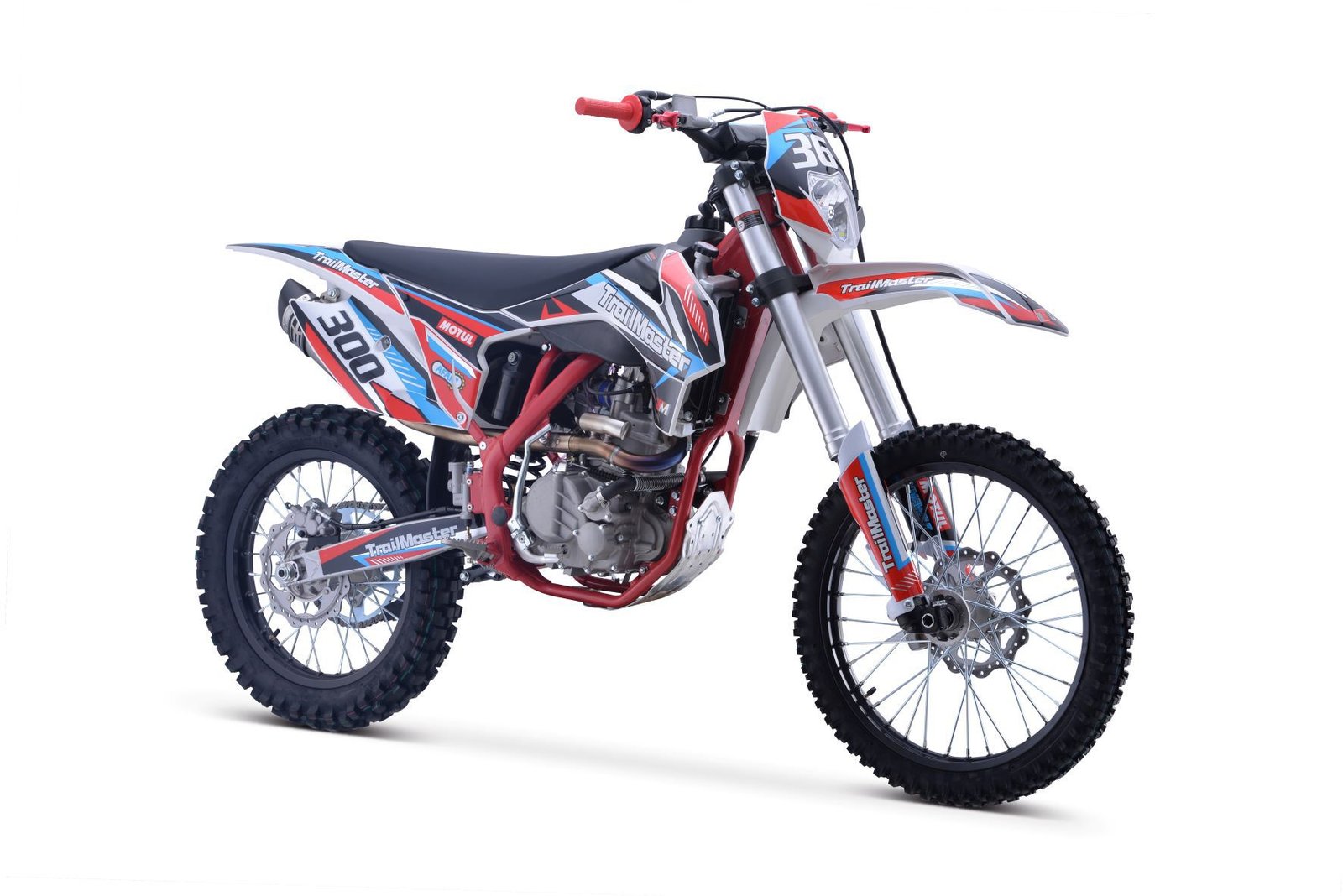

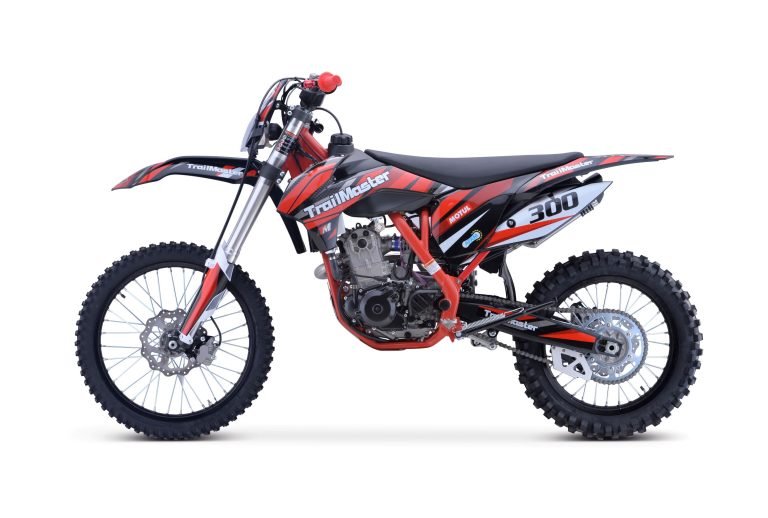

TrailMaster TM36 Competition Model DirtBike [competition only /- No warranty]

Main Features:

Powerful 4 stroke 279cc liquid cooled 27HP engine
Electric and kick start, 5 gear manual clutch
Central Tube High Strength Steel Frame
59“ wheel base and 37” seat high
Front tire 21”/Rear Tire 18”
Dual Piston Caliper, 240mm Disc front brake
910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel front shock
460mm Dual Adjustable Shock with Ballonet, 120mm Travel rear Shock
LED Headlight

Specifications:

POWER SYSTEM

Engine Type
CBS300, Single Cylinder, 4-Stroke,4-Valve, Liquid Cooling, SOHC
Displacement
279 ml
Max Power
20kw / 8500rpm – 27 Hp
Max Torque
23/7000 N.m/r/min
Compression Ratio
11.1:1
Shift Type
Manual Wet Multi-Plate, Constant mesh, two stage transmission, 5-Gears
Start Type
Electric & Kick Start
Carburetor
PWK34
Ignition
Digital CDI
Drive Train
#520 Chain, FT: 13T/RR: 49T Sprocket

PERFORMANCE

Front Fork
Φ53*Φ58.5-910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel
Rear Shock
460mm Dual Adjustable Shock with Ballonet, 120mm Travel
Front Wheel
7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21
Rear Wheel
7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18
Front Tires
80/100-21
Rear Tires
110/100-18
Front Brake
Dual Piston Caliper, 240mm Disc
Rear Brake
Single Piston Caliper, 240mm Disc

DETAILS

Frame
Central Tube High Strength Steel Frame
Swing-Arm
Steel Swingarm,L=590mm
Handle Bar
Tapered Aluminum #7075
Overall Size
86.6″X33.9″49.2″/2200x860x1250mm
Packing Size
67.5″X18″X34″/1715x450x860mm
Wheel Base
59″/1500 mm
Seat Height
37″/940 mm
Ground Clearance
11.8″/300 mm
Fuel Capacity
6.5 L / 1.72 Gal.
N.W
234lbs/117KG
G.W
326lbs/148KG
